Battery Disconnects
Relays and Kits
(Pictured 00-00055-002)
Part numbers:
12V Models:
01-00055-000 (fused)
01-00055-002 (non-fused)
01-00055-010 (marine)
24V Models:
01-00055-242 (non fused 24V)
Description:
The Intellitec battery disconnect utilizes a patented mechanically latching mechanism. This incredibly robust and cost effective design only draws power when changing states making it a "Green" product. With over 2,000,000 battery disconnects in operation world-wide, Intellitec is the global leader in battery management.
This Intellitec Battery Disconnect is rated for 100 Amps continuous and is available in fused and non fused 12V models as well as a fused 24V model. Intellitec can supply the OEM with a kit for your Battery Disconnect requirements complete with harness, switch, install kit and disconnect.
Part numbers:
12V Models:
00-00507-012
00-00507-512 (Ignition Protected).
00-00507-712 (Marine Application).
24V Models:
00-00507-024
00-00507-524 (Ignition Protected).
00-00507-724 (Marine Application).
Description:
Intellitec's Big Boy line of battery disconnects come with a latching configuration. This incredibly rugged, reliable and cost effective disconnect design is the global standard for OEM`s to use as their main Battery Disconnect.
The Big Boy is rated for 200 Amps continuous duty and is available in 12V and 24V configurations. Intellitec can supply the OEM with a kit for your Battery Disconnect requirements complete with harness, switch, hardware and disconnect.

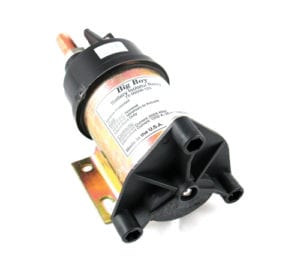

Part numbers:
12V Models:
77-90000-100 (without hardware)
77-90000-110 (with hardware)
24V Models:
77-90000-240
Description:
Intellitec's Isolator Relays are used to isolate two battery systems. This innovative and cost effective design allows the relay to operate with almost no voltage across contacts and can handle currents up to 100 Amps. The Intellitec Isolator Relay works with most common gasoline engines. The relay can be manually switched through a dash mounted switch or coupled with Intellitec's Isolator Controls for fully automatic functioning.
Part numbers:
12V Models:
77-90006-120
24V Models:
77-90006-240
Description:
Intellitec's Isolator Relays are used to isolate two battery systems. This innovative and cost effective design allows the relay to operate with almost no voltage across contacts and can handle currents up to 200 Amps. The Intellitec Isolator Relay works with most common gasoline engines. The relay can be manually switched through a dash mounted switch or coupled with Intellitec's Isolator Controls for fully automatic functioning.
Part number:
Description:
The Intellitec Battery Disconnect Systems are easy-to-install solutions that allow vehicle owners the ability to check battery voltages and perform battery disconnects from a single panel. The operator or owner can be sure the batteries are disconnected when the vehicle is not in use or being stored for long periods of time. It is conveniently located inside the vehicle, and it’s all remote.
Specifications:
Disconnect kits support both 100 amp and 200 amp options.
For addition specs about parts in kits, please reference individual product specs.
Options:
The Intellitec Battery Disconnect kits come in many options. Intellitec supports both dual and single battery disconnects. Most options include an ignition protection input and battery voltage feedback displays.
For information about replacing existing systems, download the datasheet and view page 3. The table offers replacement switch panels for obsolete panels as well as harnesses for new installs and adapter harnesses for existing installs.
Part number:
10-01090-001
Description:
The 100 amp battery disconnect system includes 1x 100A battery disconnect relay, 25 ft. of cable, battery disconnect monitor panel with voltage reading, and ignition interlock to prevent disconnection while engine is running.
Kit includes:
1x 00-01090-100 Battery disconnect panel
1x 10-00055-002 Kit relay bd w/o fuse term 100A 12V
1x 11-01090-100 Fuse single bdx battery harness 25'
Part number:
10-01090-002
Description:
The 200 amp battery disconnect system includes 1x 200A battery disconnect relay, 25 ft. of cable, battery disconnect monitor panel with voltage reading, and ignition interlock to prevent disconnection while engine is running.
Specifications:
Kit includes:
1x 00-01090-100 Battery disconnect panel
1x 00-00507-012 Big boy 12V battery guard relay 200A
1x 11-01090-200 Single fused big boy cable assy 25'
Part number:

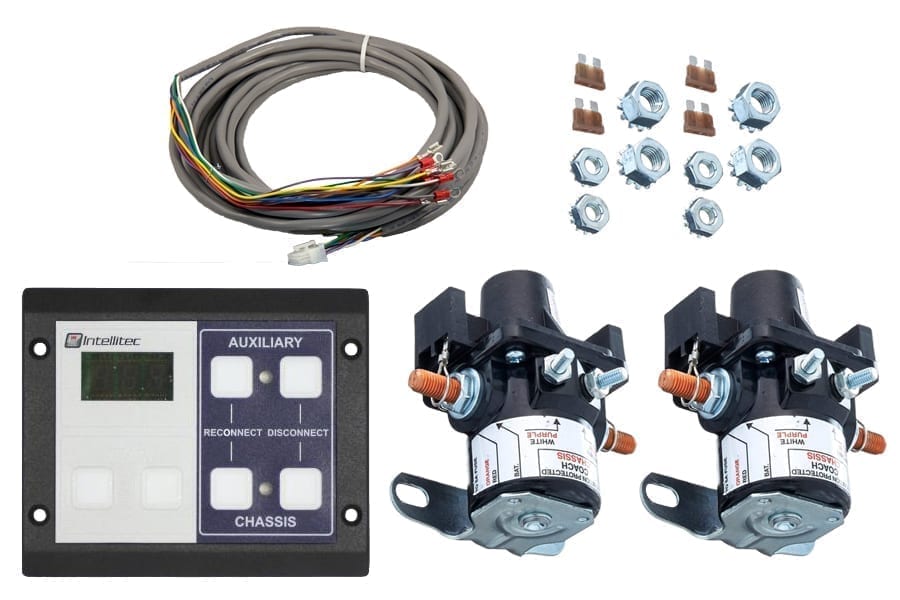

10-01090-101
Description:
The 100 amp battery disconnect system includes 2x 100A battery disconnect relay, 25 ft. of cable, battery disconnect monitor panel with voltage reading, and ignition interlock to prevent disconnection while engine is running.
Specifications:
Kit includes:
1x 00-01090-000 Battery Disconnect Switch Panel
2x 10-00055-002 12V/100A Battery Disconnect Relay Kit
1x 11-01090-001 Fused Battery Disconnect Cable Assembly 25'
Part number:
10-01090-102
Description:
The 100A/200A battery disconnect system includes 1x 100A battery disconnect relay, 1x 200A battery disconnect, 25 ft. of cable, battery disconnect monitor panel with voltage reading, and ignition interlock to prevent disconnection while engine is running.
Specifications:
Kit includes:
1x 00-01090-000 Battery Disconnect Switch Panel
1x 10-00055-002 12V/100A Battery Disconnect Relay Kit
1x 00-00507-012 12V/200A Battery Disconnect Relay
1x 11-01090-002 Fused Battery Disconnect Cable Assembly 25'
Part number:
10-01114-000
Description:
The 100 amp battery disconnect system includes 1x 100A battery disconnect relay, 20 ft. of cable, battery disconnect monitor panel with disconnect status.
Specifications:
Kit includes:
1x 00-01114-000 Battery Disconnect Switch Panel
1x 01-00055-000 12V/100A Battery Disconnect Relay
1x 11-00064-000 Battery Disconnect Cable Assembly 20'
Battery Isolation and Management
IRD, B.I.R.D.®, Battery Guard®, Battery Control Centers
Intelligent Battery Charging
Part number:

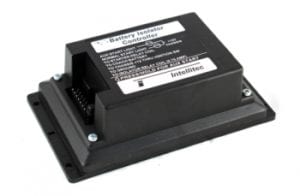

00-00131-000
Description:
Battery Isolator Controller performs two important functions. First, it provides a method of charging and isolating dual batteries in an RV. It also provides automatic auxiliary starting from the coach batteries when the chassis battery is unable to provide sufficient starting power. Indicator lamp drivers are included to signal the driver both normal and auxiliary start. This unit combines the functions of the conventional diode isolator and manually operated auxiliary start functions.
Part number:
00-00362-000
Description:
Intellitec’s Bi-Directional Isolator Relay Delay ( BIRD )offers a new approach to charging batteries in an RV application. Unlike prior systems that only allowed charging the RV battery from the engine’s alternator, the Bi-Directional Isolator Relay Delay charges both batteries when either one is being charged. When the coach is being driven, both batteries will be charged from the engine’s alternator. When the coach is plugged into shore power, both batteries will be charged from the converter. If neither battery is being charged, the batteries are fully isolated. The controller also senses heavy loads on either battery to prevent the wrong battery from being inadvertently discharged.
Part numbers:
12V Model:
00-00629-120
00-00629-512 (with Cont. Duty Solenoid)
24V Model:
00-00629-240
00-00629-524 (with Cont. Duty Solenoid)
Description:

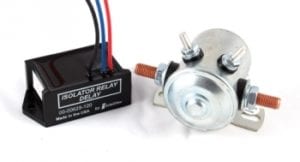

Intellitec’s Battery Isolator Relay Delay/E offers a low cost, reliable approach to charging multiple batteries. Unlike diode isolators, this system provides an engine driven alternator with the opportunity to begin charging the main battery before connecting the auxiliary battery. This allows the use of self-exciting alternators and lets the engine briefly warm up prior to placing the load of a heavily discharged auxiliary battery on the alternator.
Part number:
00-01000-000
Description:
Intellitec’s Bi-Directional Isolation Relay Delay (BIRD) GAS offers a new approach to charging batteries in an RV application. Unlike prior systems that only allowed charging the RV battery from the engine’s alternator, the Bi-Directional Isolation Relay Delay charges both batteries when either one is being charged. When the coach is being driven, both batteries will be charged from the engine’s alternator. When the coach is plugged into shore power, both batteries will be charged from the converter. If neither battery is being charged, the batteries are fully isolated. The controller also senses heavy loads on either battery to prevent the wrong battery from being inadvertently discharged.
Part number:
00-00839-000
Description:
Intellitec's Bi-Directional Isolator Relay Delay-Diesel 2™ offers a new approach to charging batteries in an vehicle which uses a diesel engine with up to a 200 Amp alternator. Adding a small dash-mounted switch will allow emergency starts of diesel engines, requiring up to 1200 Amps of starter current.
Part numbers:
00-01136-000
Description:
The Bi‐directional Isolator Relay Delay or B.I.R.D.® is a core piece of DC Managment Systems that
includes both a coach and a chassis battery. Its has 3 primary functions:
1) Bridging two battery banks together when a charging source is present from either one.
2) Isolating the batteries when the charging source is removed or when both battery banks are
fully charged.
3) Providing aux start power when the chassis battery is low and unable to start the vehicle.
Battery Run Down Protection
Part numbers:
00-01118-000
Description:
The Battery Guard® 1000 helps prevents "dead batteries". By disconnecting the battery load from the battery before it becomes too discharged, the Battery Guard® 1000 protects the battery from potential damage. It is designed to be used in vehicles with 12‐volt electrical systems. The Battery Guard® 1000 is an improved and simplified solution to the well‐recognized Intellitec Battery Guard®.
Part numbers:
10-01118-000
Description:
The Battery Guard® 1000 kit is an easy to install plug and play system designed to prevent batteries from low voltage conditions and potential damage. Included in the kit is a sleek stainless steel switch with built in LED indicator that allows the user manual control as well as feedback status of the battery system.
The Battery Guard® 1000 kit includes:
1x 00-01118-000 Battery Guard® 1000
1x 11-01085-000 Battery Guard® Reset Switch
1x 11-01118-000 10' Extension Harness
1x 11-01118-001 10' Harness
Part numbers:
00-01130-000
Description:
The Battery Guard® 1000 RV‐C is a battery disconnect and DC management Device. The primary disconnect uses Intellitect’s 100A Battery Disconnect Relay (US Patent #4,628,289) that has been used by the transportation industry for over 25 years. The auxiliary bypass output supports up to 3A and is independently controlled from the primary disconnect. Unique to this Battery Guard is the over‐current and over‐temperature shutdowns which provide additional safety and protection for the vehicles electrical system. The Battery Guard® 1000 RV‐C includes features such as automatic disconnect and reconnect, manual disconnect and reconnect, alarm output status and fault indication. Designed with independent disconnects and 2 RV‐C communication ports, one switched power and one constant power, advanced electrical systems can be created maximizing system power efficiency. With the RV‐C ports the module can provide vital information about the battery levels and power consumption, system healthy, status and more on the network to provide the end user with real‐time feedback about how their vehicle’s electrical system is operating.
Part number:
12V Models:
00-00660-120 w/ Auto Reconnect (potted black)
00-00660-121UNP w/ out Auto Reconnect (not potted)
00-00660-122 w/ out Auto Reconnect (potted black)
24V Models:
00-00660-241 w/ out Auto Reconnect (potted clear)
00-00660-243 w/ out Auto Reconnect (potted black)
Description:
Battery Guard 2000® constantly monitors the available battery power when the engine or charging system is off. If the battery voltage drops below 12.1 V or 24.1 V a voltage sensitive timer is triggered within the ECU is triggered.
By removing all loads connected to it, the Battery Guard 2000® prevents any additional power consumption, allowing enough battery charge to start the engine.
The operator can also manually disconnect the battery by pressing and holding the reset switch for 3 seconds.
Part numbers:
12V Model:
00-01013-120
24V Model:
00-01013-240
Description:
NO MORE DEAD BATTERIES
The sales of Battery Guard 2000 over ten years provided Intellitec with very significant feedback with regards to the development of the next addition to the range of Battery Guard systems. Using all the feedback we have been provided from our customer base, we began the design of the Battery Guard 3000. We decided to make all the parameters of operation programmable by either the installer or the OE.
The programmability allows an almost infinite amount of functionality in the one system, the Graphical User Interface ( GUI ) is extremely simple to use and has many very useful features designed in. As well as providing programmable low voltage disconnect to prevent a dead battery, the system also acts as a manual isolator and Programmable split charging across chassis and auxiliary batteries. With new battery technology in the marketplace now, this is a very useful feature indeed as the chemistries are very different within this new technology.
Battery Guard 3000 is now installed to 100% of the UK Fire & Rescue Fleet, as well as Ryder PLC, National Blood, Many Australian Fire & Defence fleets, UK Ambulance Fleets besides many many more. The Battery Guard 3000 is available in both 12V & 24V and in 100A & 200A versions, see data sheet for part numbers and specifications.
Part numbers:
12V Model:
10-00698-012
24V Model:
10-00698-024
Description:
Intellitec developed a Battery Guard system specifically for the Lift Gate market. Since its launch the Lift Gate Battery Guard has been installed by many of the worlds Lift Gate manufacturers and fleet operators.
Lift Gates draw huge amounts of current from the battery and it does not take very long for the Lift Gate to kill a battery stone dead resulting in the operator not being able to start the truck. Rental / Hire fleets will give testament to this perennial but avoidable issue. Lift Gate motors and components really don't perform well when operated at low voltage condition, it certainly reduces there functional life expectancy quite dramatically.
The Intellitec Lift Gate Battery Guard is rugged in design, it has to be, and there is probably no tougher environment in the world in which electronics have to function than inside a Lift Gate pump enclosure. You have high moisture, grease, chemical, huge temperature fluctuations to name just a few challenges.
The Intellitec Lift Gate Battery Guard was designed to live with this environment, it fits in series with the Lift Gate pump solenoid and is installed easily to any Lift Gate in thirty minutes. The Lift Gate Battery Guard provides the operator with an audible and visual warning of low voltage condition for 2 minutes prior to automatic low voltage disconnect. There is no reset switch, once activated, the operator is forced to start the truck and charge the battery, once Lift Gate Battery Guard sees the battery being recharged we automatically reconnect power so the Lift Gate can continue to be used.
Lift Gate Battery Guard is perfect for rental fleets anywhere, contact us to discuss your application.
Lighting Control
Cargo Light, FET Modules, Road Commander, & Command Center
Part numbers:
12V Model:
00-00712-130
24V Model:
00-00712-240
Description:
The Intellitec Cargo Light Control (CLC) is designed to control the box lights on service vehicles. It is easy to install, provides multi-point switching and uses momentary switches in parallel to turn the lights on and off. In addition to this convenient on/off function, the CLC offers battery rundown protection from the lights being accidentally left on.
The operation is simple. When the lights are on for more than twenty minutes, the CLC will blink the lights at a rate of six to ten times per minute alerting the driver of an impending shut off. After one minute, the lights will automatically be turned off, preventing further run down of the battery. If the driver wants to keep the lights on, he simply turns the CLC on again, allowing another twenty minutes of use.
The Cargo Light Control also includes low battery indication. If the battery voltage falls below 12 volts for a period of two minutes while the lights are on, the lights will blink six to ten times per minute and then shut off.
Part numbers:
12V Model:
00-00926-120
24V Model:
00-00926-240
Description:
The Intellitec Daytime Running Light Control (DRL) is a cost effective solution for the provision of reduced headlights during daylight hours. Using pulse width modulation technology, the DRL ECU operates the headlight bulb filaments at a 50% duty cycle, to achieve this three conditions need to be met, these are -
• The engine must be running
• The handbrake is released
• The headlights are switched off
If the driver turns on the headlights the DRL ECU is isolated and the head lamp bulb filaments return to full brightness. The DRL has been designed to be suitable as either an OEM or indeed retrospective installation where the current monitoring of headlamp bulbs is a desired option. Packaged in an IP68 fully waterproof enclosure, using Delphi Paccar plug, the DRL ECU can be mounted anywhere on the vehicle.
A diagnostic LED is provided on the ECU to provide indication and status of operation, these are -
• Constant Red LED = The ECU has power but is not in PWM Mode
• Flashing slow 2 seconds = The ECU is active and is in PWM Mode.
• Flashing fast 0.5 seconds = The ECU has power but there is an internal fault
Data Sheet
Part number:
00-00098-000
Description:
Intellitec's TouchLite is a sensor pad activated control for outdoor lighting. When
wired into an existing 12 Volt outdoor porch light, it provides 30 seconds of light to allow
the user to find the door key and unlock the door in a darkened area.
Part number:
6.5A Lamp Dimmer:
00-00263-000 (Cream)
00-00263-001 (Black)
11A Lamp Dimmer:
00-00263-100 (Cream)
Description:
Intellitec's Light Dimmer offers the RV owner the convenience of dimming the interior lights from full brilliance to a more comfortable level for watching TV or entertaining guests.
Part number:
00-00256-000
Description:
Intellitec's 5-Minute Light Timer offers the RV owner a delayed light off function. When the owner activates the lighting circuit but forgets to turn it off, the Intellitec 5-Minute Light Timer will automatically turn off the circuit and prevent additional battery drainage.
The unit will handle up to 5 Amps of incandescent lamps. It is a two terminal controller that wires in series with the light. It can be wired either in the high side or lo side of the circuit.
Motor Controls
Water Pump, Slide Outs, Wiper Systems, Dive Platforms, Boarding Doors, & Bow Thrusters
Water Pumps
Part number:
00-00776-200
Description:
The MONOPLEXTM 15 Amp Water Pump multipoint control is designed to operate as a low side remote switch in 12 volt DC systems. As its name implies, it was designed to control the domestic water pump. This controller will only work with loads greater than 5 amps but less than 15 amps. The control is packaged in a plastic enclosure suitable for mounting in a wet environment, such as near the water pump. It is capable of operating from multiple switch points (as many as desired) and up to 100 milliamps of power indicators. Power can be supplied either from a battery or a converter.
Part number:
00-00145-100
Description:
Monoplex water pump controller is designed to operate as a “low side " remote switch in 12V DC systems. Whilst the water pump controller was designed to control the domestic water pump in an RV or boat application, its use however is not limited to this, it could also be used to control a wide variety of loads such as lighting, other pumps, fans etc when it is convenient to switch on the ground side. The Monoplex water pump control is packaged in a plastic enclosure for mounting near the water pump using two flat head screws. The water pump controller is capable of operating multiple switch points and up to two LED power indicators may be used all on the single wire. Power to the water pump controller can be supplied from either the battery or the converter.
Slide Out Room Controllers
Part numbers:
20A-50A:
00-00971-000
10A-35A:
00-00971-100
5A-15A:
00-00971-200
2A-6A:
00-00971-300
Description:
Intellitec's Motor Control with voice output is part of the expanding family of the MONOPLEXTM System. These controllers are designed to control the operation of a slide out room electrical mechanism. To operate the room, the owner would simply press and hold the button in the desired direction(In or Out). With the jumper in the default setting, there is delay in operation of the slide-out to allow for a voice announcement that the slide-out is in motion.
The motion of the slide-out may be stopped at any time by releasing the button. When the slide out reaches it's outer most limit, the unit will sense the rise in current and switch off the power to the slide out motor. To move the room back in again, the owner will press and hold the button in the desired direction. Again, there is a short delay in operation of the slide- out to allow for a voice announcement that the slide- out is in motion.
When the slide out reaches it's inner most position, the controller will sense the rise in current and will shut off power to the motor. Direction control is accomplished by using the rocker switch terminated at the MPX Bus input. The module operates by sensing the voltage on the MPX bus input. When the MPX bus is at 12 Volts, the motors are at rest. As the switch is depressed (In or Out direction) each function sends a different load to the module which in turn interprets the direction of travel.
The Current Adjust is used to prevent damaging the motors or opening of the fuse or circuit breaker for the slide-out unit. If the current exceeds a preset level, the module shuts off. To restart the motor, press the switch in the another direction.
Power Distribution and Energy Management
Fuse Panel, AESS, Automatic Transfer Switch, & EMS
Part number:
00-00884-000
Description:
Intellitec have been building Power distribution systems for over thirty years, we have a wide range of standard fuse panels, smart fuse systems and relay fuse modules that are used in the special vehicle or upfitting industry. These are very rugged reliable and cost effective parts, we are also happy to discuss custom designed Power Distribution systems.
The Intellitec flush mount fuse blocks are the ideal answer to the problem of installing a fused distribution panel in a vehicle where a finished look is demanded. The fuse block provides spaces for up to 12 automotive type ATO fuses. The fuses are divided into two groups of six fuses. The fuse block comes with a snap on cover that when in place hides the fuses, fuse puller and the mounting screws.
Part number:

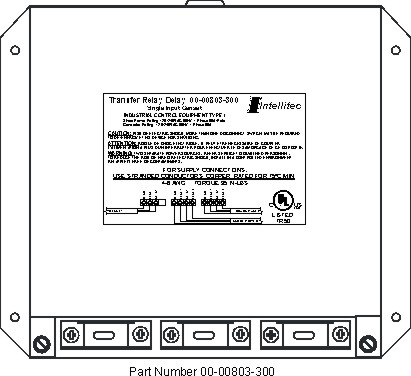

00-00803-300
Description:
The 50 Amp Transfer Relay is used to transfer the power source of a coach between the shore power and the generator. Power from the shore power cord is fed to the normally closed contacts of two contactors. This allows the power from both lines of the shore cord to pass through into the coach distribution panel. Power from the generator is fed to the normally open contacts and to a delay circuit on the printed circuit board. When the power from the generator is applied, the delay circuit senses the power from Line 1 and applies DC power to the contactor coils, after approximately 15 seconds. This pulls in the two contactors, applying the power from the generator to the coach.
Part number:
00-00803-400
Description:
The 50 Amp Transfer Relay is used to transfer the power source of a coach between the shore power and the generator. Power from the shore power cord is fed to the normally closed contacts of two contactors. This allows the power from both lines of the shore cord to pass through into the coach distribution panel. Power from the generator is fed to the normally open contacts and to a delay circuit on the printed circuit board. When the power from the generator is applied, the delay circuit senses the power from Line 1 and applies DC power to the contactor coils, after approximately 15 seconds. This pulls in the two contactors, applying the power from the generator to the coach.
Part number:
00-00638-000
Description:
Intellitec’s Transfer Relay Delays Transfer Relay Delays are designed to automatically transfer a 120 VAC load, between two power sources, such as generator and shore power. The units are responsive to one of its inputs. If power is applied to that input, after a 15 second delay, the load will be switched to that input. This input is typically fed from the generator of an RV, to transfer the load to the generator from shore power, when the generator is running.

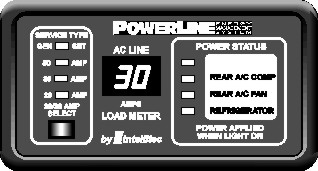

00-00903-250 - Display Panel (Pictured)
Part number:
00-00911-000
Description:
The PowerLine 2004 EMS is a specialized power distribution and energy management system intended to be used in recreational vehicles. The Control Module is housed in the standard main distribution panel, a sheet metal enclosure with removable front panel. The Display Panel is mounted to a wall or suitable surface remotely from the distribution panel. It provides a system of energy management to minimize the over-loading and tripping of circuit breakers.
Installation and Service Manual
00-00591-000 - Master Controller
Part number:
A/C BTU'S: FRONT REAR
00-00591-000 11K 11K
00-00591-100 13.5K 11K
00-00591-200 10K 9K
Description:
The ELECTRONIC CLIMATE CONTROL (ECC) System offers automatic and manual control of the A/C 1 and A/C 2 rooftop air conditioners and furnace/s in the Motor home. The system includes an energy management system that shuts off
the air conditioners, when necessary, to prevent electrical over-load. It also includes a number of features that provide the
owner with the most comfortable temperature controlled environment possible.
Part number:
00-00189-000
Description:
Radio Switch Control utilizes Intellitec’s exclusive Monoplex technology to control loads of up to 3 amps between two power sources.
The Radio Switch Control is generally used to control an RV’s in-dash radio.
Part number:
00-00714-000
Description:

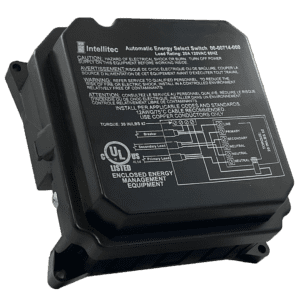

Intellitec's Automatic Energy Select Switch (AESS) is designed to be used in RVs to share the power available from a single circuit breaker between two large loads(up to 20 amps). The AESS applies power to both appliances until the primary load draws current. It then removes power from the secondary load to prevent the circuit breaker from being overloaded.
00-00855-000 - Master Controller
Part number:
00-00855-000
Description:
The ELECTRONIC CLIMATE CONTROL II (ECC2) System offers automatic and manual control of the A/C1 and A/C2 roof-top air conditioners and furnace/s in the motor home. The system includes an energy management system that shuts off the air conditioners, when necessary, to prevent electrical over-load. It also includes a number of features that
provide the owner with the most comfortable temperature controlled environment possible.
00-00856-000 - Master Controller
Part number:
00-00856-000
Description:
The ELECTRONIC CLIMATE CONTROL II (ECC2) System offers automatic and manual control of the A/C1 and A/C2 roof-top air conditioners and furnace/s in the motor home. The system includes an energy management system that shuts off the air conditioners, when necessary, to prevent electrical over-load. It also includes a number of features that
provide the owner with the most comfortable temperature controlled environment possible.
00-00903-050 - 50 Amp EMS Display Panel
00-00894-000 - 50 Amp EMS Distribution Panel
Part number:
760 Model:
00-00894-200
900 Model:
00-00894-700
Description:
The 50 Amp Smart EMS Model 900 consists of two elements: the Display Panel and the Distribution Panel. The Display Panel is mounted on a wall or suitable surface, remotely from the Distribution Panel and convenient to the user.
The Distribution Panel is a completely self-contained 120/240 volt power distribution and energy management system
intended to be used in recreational vehicles. The Distribution Panel is housed in a sheet metal enclosure with removable
front panel. It provides circuit protection for all the 120 VAC loads in the RV and a system of energy management to
minimize the over-loading and tripping of circuit breakers.
Installation and Service Manual for Model 700
Installation Guide - Upgrade Kit for Model 760
Installation and Service Manual for Model 900
Installation and Service Manual for Model 900 Errata
Installation Guide - Upgrade Kit for Model 960
00-00903-050 - 50 Amp EMS Display Panel
Part number:
30A Model:
00-00903-030 (Smart EMS Black)
50A Model:
00-00903-050 (Smart EMS Off White)
00-00903-150 (Smart EMS Black)
Winnebago EMS:
00-00903-250
Description:
The Smart EMS is a completely self-contained 120 volt Power Distribution and Energy Management System, intended for use in recreational vehicles. It is housed in a sheet metal enclosure with removable front panel. It provides circuit protection for all the 120 VAC loads in the RV and a system of energy management to minimize the over-loading and tripping of circuit breakers.
Installation and Service Manual
Installation and Service Manual
Installation and Service Manual
00-00912-000 - 30 Amp EMS Distribution Panel
Part number:
30A Model:
00-00912-000 (Board Only)
00-00912-100 (Smart EMS)
Description:
The Smart EMS is a completely self-contained 120 volt Power Distribution and Energy Management System, intended for use in recreational vehicles. It is housed in a sheet metal enclosure with removable front panel. It provides circuit protection for all the 120 VAC loads in the RV and a system of energy management to minimize the over-loading and tripping of circuit breakers.
Installation and Service Manual
Multiplexing and Convenience Panels
PMC, IPLC, & Road Commander
Intellitec has been designing and manufacturing multiplexed solutions for the special vehicle market since 1987. These products and systems range from simple multi point switching controllers to complete vehicle systems used in RV, Buses, Trucks, and Emergency Service Vehicles worldwide.
Road Commander
Road Commander is the latest programmable control system designed and manufactured by Intellitec. The initial release includes 7 hardware modules, Road Commander configuration GUI & Road Commander configurable smart phone or tablet APP for both Android & IOS devices. Road Commander is the perfect solution for the RV and specialty vehicle industry. The system is very simple to install, navigate and requires no special training or software experience. If you can click a box, you can program Road Commander. The system is Bluetooth compatible and can be hard wired controlled using any type of switch or button the OEM or converter chooses.
Part number:
00-01094-000
Description:
The Road Commander Bluetooth interface module provides an interface between new or existing Road Commander systems and various smart phones and tablets. All features of the Road Commander system are available through the Bluetooth connection.
This includes vehicle lighting and motor control, system monitoring, vehicle heating, ventilation, and air conditioning systems, and vehicle generators. Each 1094 module provides connection to a single smart device. Additional modules may be installed to allow connection to multiple devices. Smart device applications are available for Android and iPhone devices. This product also includes 4 inputs. These inputs may be mapped to a variety of system functions including Bluetooth pairing, and system interlock based on vehicle ignition, brake signals, or any other 12v signal. The module also includes inputs for Intellitec PMC networks and the module may be used to control PMC devices on a single PMC loop.
Part number:
00-01095-000
Description:
The Road Commander Low Current I/O module is intended for use on low current loads within the Recreational Vehicle, lighting control interior or exterior, On, Off and Dim being one specific application.
The maximum output load current for each of the four channels is five, 5 Amps. The Low Current I/O module has four available output channels rated at 5 Amps each. The maximum current draw from the Low Current module is 20 Amperes.
The Low Current I/O module has eight Input channels which may be used to activate the lighting zones within the motorized vehicle or travel trailer. These inputs can be configured as a high-side or low-side activation through the module configuration program. Multiple low current modules may be used to complement the wireless control and operation of any low current device.
Part number:
00-01096-000
Description:
The Road Commander High Current Module provides a high current load with power to operate. Examples of such high current loads are: extending and retracting the slide-out room; operation of a water pump or water heater.
The Slide-out and High Current Module, is designed to operate and control the retraction and extension of a room slide-out system. This product derives bi-directional operation from a single power source. The module is rated to supply up to 30 Amperes continuously to extend or retract a single slide-out room.
The High Current module is configurable to turn ON or activate a water pump or supply power to a water heater if desired. Configured in this mode of operation, only one, (1), output channel is active and is capable of supplying a load current up to a maximum of 20 Amperes. The load current for each output channel is configurable through using the module configuration tool to provide the proper level of circuit protection.
Part number:
00-01097-000
Description:
The Road Commander Systems Monitor Module provides graphical depiction of the health and status of your recreational vehicle. The System Monitor interprets the battery voltages for up to four banks, and reads the tank level status for up to four tanks and sends this information to your SMART Device and/or LCD panels.
The battery or power sources are the Auxiliary power and/or Coach and Chassis sources. The Tank Levels, (Fresh, Gray1, Gray2, and Black) are collected and are available so the user can have up to the moment information on the critical levels within the recreational vehicle.
The System Monitor module provides an easy to use and understandable display of the ‘health’ of your recreational vehicle remotely through the use of your SMART device. The System Monitor is not a ‘stand-alone’ component module, but multiple System Monitors may be installed within the same model. The System Monitor module is used in conjunction with the BT-Module in order to communicate the information to your SMART device. The module is internally protected from over-current situations.
Part number:
00-01105-000
Description:
The Road Commander HVAC module provides an interface between new or existing Road Commander systems and vehicle heating, ventilation, and air conditioning systems. It is intended to operate seamlessly with industry standard HVAC components and allows operation of these systems via touchscreens or smart device Bluetooth applications.
Each interface module can control two HVAC units with high and low fan speeds, heating, and air conditioning. Additional modules may be installed to control addition HVAC units. Settings for all HVAC units may be linked or controlled as independent zones.
System software provides manual and automatic control and “set back” functions. The HVAC module provides direct heat control for reverse cycle installations. All installations require a standard analog control for each HVAC unit, and an external relay is required for direct electric heat applications.
Part number:
00-01106-000
Description:
The 7" Touch Screen from Intellitec Products LLC is the latest addition to the Road Commander series of products. The Touch screen is a flush mount 7 inch hardwired CANBUS capacitive touch LCD that has been designed to function with the Intellitec Road Commander system.
The Touch Screen is supplied pre-loaded with a Road Commander APP which currently controls the following functions - HVAC, slide outs, awnings, lighting, diming functions including “ scene ” programming, batteries & tanks reading and monitoring.
Within the Road Commander application is the ability to control “mood lighting scenes” with a just one button touch, these scenes can be configured and changed by the vehicle owner to suit their own requirements. These scenes could for example be “Reading” or “Party” where certain lights would dim to a % decided by the owner.
Part number:
00-01108-000
Description:
The Road Commander generator interface allows a new or existing Road Commander system to remotely start and stop typical recreational vehicle generators. The generator may be operated via external switches, touchscreens, or smart device Bluetooth applications.
Additional module inputs provide generator status information. System software provides manual and automatic start, and scheduled “quiet times”. Automatic start functions may be enabled based on HVAC demand via the Road Commander HVAC Interface module (00-01105-000) or by vehicle battery voltage via Road Commander System Monitor module (00-01097-000). The generator interface is configurable via PC and supports various generators including models from Onan, Honda, and Kohler.
Part number:
00-1115-000
Description:
The 4.3" Touch screen from Intellitec Products LLC is the latest addition to the Road Commander series of products. TheTouch screen is a flush mount 4.3 inch hardwired CANBUS capacitive touch LCD that has been designed to function with the Intellitec Road Commander system.
The Touch Screen is supplied pre-loaded with a Road Commander APP which currently controls the following functions - HVAC, Generator, Slide outs, Awnings, Lighting, diming functions including “ scene ” programming, Batteries & Tanks reading and monitoring. Within the Road Commander application is the ability to control mood lighting scenes with a just one button touch, these scenes can be configured and changed by the vehicle owner to suit their own requirements. These scenes could for example be Reading or Party where certain lights would dim to a setting decided by the owner, all of this is done via the Touch Screen or the mobile applications
Part Number
00-01124-000
Description
The Road Commander Mega Module is an all in one solution. Combining several of the existing Road Commander modules into one, the Mega Module provides a smaller footprint while maintaining all of its core features. This module allows the user the ability to control dimming circuits, high current devices such as water pumpers and heaters, shades, slide outs and generator functions as well as monitor tank levels and batteries. With 26 configurable low side inputs, the Mega Module gives users the options to select which ever switch type preferred. Additionally, an ignition input signal allows outputs to be locked out if so desired. Two 5/16” studs provide easy connections for power and ground, and common Mini‐fit and Faston connectors are used across the module to maintain industry standards.
Programmable Multiplex Control PMC
Programmable Multiplex Control ( PMC ) has 320 channels of I/O across a very significant family of I/O hardware architecture to suit the majority of applications. PMC operates with one master module ( CPU ) with various I/O. Each I/O module has ten channels, you can have as little as 1 I/O module in a system, or as many as 32. The Intellitec Windows based PMC software suite WIN PMC is used to configure the system, only the master or CPU requires programming. Win PMC is a series of AND, NOT & OR commands, coupled with timers and 160 virtual channels make this an extremely powerful tool. For full and detailed technical data, please download our PMC Catalog.
Part number:
Senior:
00-01066-000
Junior:
00-01066-100
Description:
The Intellitec Programmable Logic Controller (I-PLC), is a cost effective, simple and easy to integrate PLC system for vehicles. Dual voltage, Rugged and reliable by design, I-PLC can be programmed to suit almost any application and customer requirement.
IPLC is now being installed as the main electronic control for Ambulances, Mini Buses, City Buses, Coaches and Police cars.
Key benefits
- Dual voltage 12 & 24V
- 23 programmable outputs
- 10 inputs
- temperature sense input
- Lux level input via key pad
- LCD Display of all functions
- Two analog battery inputs
- 2 CAN lines
- Expandable:- communicates with all other Intellitec PMC modules
- Various key pads and switch panels available
- Full software suite
- Product training in USA & UK
- Integration assistance if required.
IPLC puts the control of the electrical design build firmly in the control of the OE, functional and application updates are all resolved via software which is issued free of charge to the OEM. Intellitec also provides full training on both the hardware and software, we can also assist you with integration if required.
Part number:
12V Model:
00-01015-120
24V Model:
00-01015-240
Description:
The PMC CPU is the main component of Intellitec's Programmable Multiplex Control family. It controls remote I/O modules through Intellitec's multiplex communications system (Pat. No. 4,907,222 and 6,011,997). This multiplex system allows the CPU, I/O Modules and switch panels to be wired together with two wires. This CPU has two identical, 4-pin, Amp Mate-N-Lok connectors. Pin 1 provides a fused 12 volt power source to power things like switch back lighting. Pins 2 and 3 are the multiplex signals (two loops of 160 channels each) which communicate instructions to and from each of the I/O modules, Pin 4 is multiplex communication ground.
A system can be as small as one CPU and one I/O module, or it can communicate with up to 32 I/O modules. Each module can have a combination of up to 10 inputs, or outputs. Multiple modules can be wired to a single connector. All input, or switch information is gathered through the remote modules and directly communicated to the CPU. The CPU then interprets the inputs, determines the states of all outputs and communicates that information to the remote modules via the PMC communications link (pins 2 and 3).
Part number:
12V Model:
00-00953-416
24V Model:
00-00953-406
Description:
The PMC I/O Module 416 is a member of Intellitec's Programmable Multiplex Control family.It works in combination with the PMC CPU and other standard, semi-custom, or custom I/O modules. The 406/416 provides power fusing, switching, and distribution in one module. It has two, 15 Amp SPST relays and four, 10 Amp SPST relays for switching loads to the battery. Each fuse position can be filled with a fuse, or circuit breaker.The total module current should not exceed 50 Amps. There are four input connections for rocker,limit, or sensor switches. Each individual input can be configured as either a low side switch to ground, or a high side switch to battery. Input information is directly communicated to the CPU and the relays are controlled by the CPU via the PMC communications link. All of the output harnesses are connected with AMP Mate-N-Lok connectors to reduce installation time and errors. The approximate module dimensions are 6.375" X 6.250" X 1.875" (16.2mm X 15.9mm X 4.8mm). It should be installed in a protected environment inside the vehicle.
Part number:
Latching:
00-00838-000
Non-Latching:
00-00838-410
Description:
The PMC Output Modules 00-00838-000 and 00-00838-410 are members of Intellitec's Programmable Multiplex Control family, as well as the 160 Channel Multipoint Switching System. They work in combination with the PMC CPU or the 160 Channel IPX Master and other standard, semi-custom, or custom I/O modules.
The modules provide power fusing, switching, and distribution. They have five 20 Amp SPST relays and five 10 amp SPST relays for switching loads to the battery. Each fuse position can be filled with a fuse or circuit breaker. The total module current should not exceed 70 Amps.
Part number:
12V Model:
00-00844-120 (Latching)
00-00844-510 (Dimmable)
24V Model:
00-00844-500 (Dimmable)
Description:
The PMC 844-500 & 844 510 modules are member of Intellitec’s Programmable Multiplex Control family and work in conjunction with the PMC CPU. The 844 series provide 10 solid state PWM outputs that can be used with any Intellitec multiplex keypad for light dimming.
Part number:
12V Models:
00-00846-516 (50A)
00-00846-616 (37A)
24V Models:
00-00846-506 (50A)
00-00846-606 (37A)
Description:
The 00-00846-XYZ is a member of Intellitec's Programmable Multiplex Control family. It works in combination with the PMC CPU and other standard, semi-custom, or custom I/O modules.
The 00-00846-XYZ provides power-fusing, switching, and distribution in one module. With it's six, solid-state, high- side outputs it is capable of controlling a total of 37or 50 Amps. Please refer to the tables in the datasheets for proper load distribution.
There are four input connections for rocker, limit, or sensor switches. Each individual input can be configured as either a low-side switch to ground, or a high-side switch to battery. Input information is directly communicated to the CPU via the PMC communications link.
Part Number:
00-00837-000
Description:
The Multiplex Control Master provides the clock source and timing for Intellitec's Multi-Point Switching system. In order to operate any of the PMC modules designed by Intellitec, One of these modules, or another master module must be included.
(00-00869-010 Pictured)
Part number:
6 Buttons:
00-00869-006 (Back light Grn/Amber)
00-00869-206 (Back light Bright Grn/Red)
10 Buttons:
00-00869-010 (Back light Grn/Amber)
00-00869-210 (Back light Bright Grn/Red
Description:
Intellitec’s Programmable Keypads are members of Intellitec's Programmable Multiplex Control Family, as well as
the 160 Channel Multipoint Switching System (RV Multiplex). They work in combination with the 160 Channel IPX
Master (00-00837-000) or the PMC CPUs (00-01015-120) and other standard, semi-custom, or custom I/O modules.
- Available in 4, 6 and 10 button versions
- Available with Green backlighting and Red Indicators, or Green backlighting and Amber indicators
- Wall cover plates are available in white, black, or pumice
Part number:
12V Model:
00-00643-916
24V Model:
00-00643-906
Description:
PMC Rocker Switch Adapters are members of Intellitec's Programmable Multiplex Control Family. They work in combination with the PMC CPU and other standard, semi- custom, or custom I/O modules.
ITT rocker switches (also known as SWF, Britax, or Sprague) plug directly into the 909 or 919 Adapter, eliminating the need for a harness, or separate wiring to each switch. All switch information is directly communicated to the PMC CPU via the two wire PMC communications link.
Part number:
12V Model:
00-00802-610
24V Model:
00-00802-600
Description:
The PMC I/O Module 600/610 is a member of Intellitec's Programmable Multiplex Control family. It works in combination with the PMC CPU and other standard, semi-custom, or custom I/O modules.
The 600/610 module provides power switching, and distribution in one module. With it's ten, solid-state, high-side outputs, it is capable of controlling a total of 50 Amps. Each output is capable of controlling a maximum of 10 Amps. The outputs are controlled by field effect transistors and are ideal for high use applications, such as turn signals, brake lights and emergency vehicle flashers.
Part number:
12V Model:
00-00842-012
24V Model:
00-00842-024
Description:
PMC Rocker Switch Adapters 842 are members of Intellitec's Programmable Multiplex Control Family. They work in combination with the PMC CPU and other
standard, semi-custom, or custom I/O modules.
Carling Contura II Series rocker switches plug directly into the adapter, eliminating the need for a harness, or separate wiring to each switch. All switch and indicator
light information is directly communicated to and from the PMC CPU via the two wire PMC communications link. A third and fourth wire provides power and ground
for the lamps.
Part number:
YEL/GRN LED:
00-00870-010
RED/GRN LED:
00-00870-210
Description:
Intellitec’s 00-00870-XYZ Programmable Keypads are members of Intellitec's Programmable Multiplex Control Family, as well as the 160 Channel Multipoint Switching System (RV Multiplex). They work in combination with the 160 Channel IPX Master (00-00837-000) or the PMC CPUs (00-01015-120) and other standard, semi-custom, or custom I/O modules.
- Available in 4, 6 and 10 button versions
- Available with Green back lighting and Red Indicators, or Green back lighting and Amber indicators
- Units have extra bright LEDs that can be dimmed via PMC programming or software
- Push button legends are easily created and applied by the installer
- Programmable via a Windows interface and GUI provided by Intellitec. Each button, indicator and back lighting can be easily programmed by the installer to communicate on any PMC System, or Multipoint Switching System channels
- Wall cover plates are available in white, black, or pumice
- Keypads can be mounted behind a panel with cut-outs, or on the surface with wall cover plates
Part number:
BYEL/BGRN LED:
00-00879-010
BRED/BGRN LED:
00-00879-210
Description:
Intellitec’s Programmable Keypads 00-00879-010, and 00-00879-210 are members of Intellitec's Programmable Multiplex Control Family, as well as the 160 Channel Multipoint Switching System (RV Multiplex). They work in combination with the 160 Channel IPX Master (00-00837-000) or the PMC CPUs (00-01015-120 ) and other standard, semi-custom, or custom I/O modules.
- Available in 4, 6 and 10 button versions
- Available with Green back lighting and Red Indicators, or Green back lighting and Amber indicators
- Units have extra bright LEDs that can be dimmed via PMC programming or software
- Push button legends are easily created and applied by the installer
- Programmable via a Windows interface and GUI provided by Intellitec. Each button, indicator and back lighting can be easily programmed by the installer to communicate on any PMC System, or Multipoint Switching System channels
- Wall cover plates are available in white, black, or pumice
- Keypads can be mounted behind a panel with cut-outs, or on the surface with wall cover plates
Part number:
12V Model:
00-00917-416
24V Model:
00-00879-406
Description:
The PMC 6 Relay / 4 Input I/O Module is a member of Intellitec's Programmable Multiplex Control family. It works in combination with the PMC CPU and other standard, semi-custom, or custom I/O modules.
The 917 module provides six undedicated relays for switching floating signals. Each relay can carry up to 10 amps of current. There are diagnostic LED’s for each of the relay circuits. These LED’s will light when the respective relay is closed.
Part number:
00-00923-000
Description:
The PMC 923-000 module is a member of Intellitecs Programmable Multiplex Control family and work in conjunction with the PMC CPU. The 923-000 provides ten low wattage low side outputs for use with buzzers, beepers or warning indicators.
Part number:
12V Model:
00-00916-120
24V Model:
00-00916-240
Description:
The PMC 916-120 module is a member of Intellitecs Programmable Multiplex Control family and work in conjunction with the PMC CPU. The 916-120 provides power fusing, switching and distribution all in one module. The 916-120 would typically be used to operate reversible motor loads.
Part number:
12V Model:
00-00622-110
24V Model:
00-00622-100
Description:
PMC Input Modules 100 and 110 are members of Intellitec's Programmable Multiplex Control family. They work in combination with the PMC CPU and other standard semi-custom or custom I/O modules.There are ten input connections for rocker, limit, or sensor switches.Each individual input can be configured as either a switch to ground, or a switch to battery. All input information is directly communicated to the CPU via the PMC communications link. The CPU utilizes this information to control other PMC output modules. All of the output harnesses are connected with AMP Mate-N-Lok connectors to reduce installation time and errors. The approximate module dimensions are 6.375" X 3.750" X 1.875" (16.2mm X 9.5mm X 4.8mm).The module should be installed in a protected environment inside of the vehicle.
Part number:
12V Model:
00-00809-120
24V Model:
00-00809-240
Description:
The 00-00809-XYZ modules are members of Intellitec's Programmable Multiplex Control family and work in conjunction with the PMC CPU. The 00-00809-XYZ provide 4 inputs to the Programmable Multiplex control system that correspond to specific battery voltages.
Part number:
12V Model:
00-00656-919
24V Model:
00-00656-909
Description:
The 9 way switch adapter is designed to allow IITT rocker switches (also known as SWF, Britax, or Sprague) plug directly into the adapter, eliminating the need for a harness, or separate wiring to each switch. All switch information is directly communicated to the PMC CPU via the two wire PMC communications link. The module can be set to operate on 1 of 16 channels A-P using a series of jumpers 1-4. The switches do not control the loads or functions directly, they communicate information to the PMC CPU which sends the information to an output module for functional control.
Part number:
00-00934-000
Description:
The Water Proof Ten Input Module 00-00934-100 is a member of Intellitec’s Programmable Multiplex Control family. It works in combination with the PMC CPU or the IPX master and other standard, semi-custom, or custom I/O modules.The module can be used on either 12 or 24 volt systems.The module provides ten digital inputs to the Intellitec multiplex systems. Each of these input channels is programmable to transmit to any of the 160 channels on a PMC loop. They can be programmed to be either high side or low side input to provide greater flexibility.
Part number:
Latching:
00-00969-000
Non-Latching:
00-00969-410
Description:
The PMC Output Modules 00-00969-000 and 00-00969-410 are members of Intellitec's Programmable Multiplex Control family. They work in combination with the PMC CPU or the 160 Channel IPX Master and other standard, semi-custom, or custom I/O modules.
The modules provide power fusing, switching, and distribution . They have three 20 Amp SPST relays and seven 10 amp SPST relays for switching loads to the battery. Each fuse position can be filled with a fuse or circuit breaker. The total module current should not exceed 70 Amps.
Part Number:
00-00935-000
Description:
The Water Proof Ten Input Module 00-00935-000 is a member of Intellitec's Programmable Multiplex Control family. It works in combination with the PMC CPU or the IPX master and other standard, semi-custom, or custom I/O modules. The module can be used on either 12 or 24 volt
systems.
The module provides ten digital inputs to the Intellitec multiplex systems. Each of these input channels is programmable to transmit to any of the 160 channels on a PMC loop. They can be programmed to be either high side or low side input to provide greater flexibility.
Part number:
12V Model:
00-00644-816
24V Model:
00-00644-806
Description:
PMC Warning Light Adapters 806 & 816 are members of Intellitec's Programmable Multiplex Control family. They work in combination with thePMCCPUand other standard, semi-custom or custom I/O modules.
ITT warning lamps (also know as SWF, Britax, or Sprague, not provided) plug directly into the 806 or 816 Adapter, eliminating the need for a harness or separate wiring to each lamp.
The lamps are controlled by the central PMC CPU via the two wire PMC communications link.
Part number:
00-00800-240
Description:
The PMC CPU is the main component of Intellitec's Programmable Multiplex Control family. It controls remote I/O modules through Intellitec's multiplex communications system (Pat. No. 4,907,222 and 6,011,997). This multiplex
system allows the CPU, I/O Modules and switch panels to be wired together with two wires.
Through the use of Intellitec's WinPMC II Windows based software program and the connection of a PC to the RS232 port, the user can easily set up the relationships between the switch inputs, timers and outputs.
Part number:
BYEL/BGRN LED:
00-00873-006
BRED/BGRN LED:
00-00873-206
Description:
Intellitec’s Programmable Keypads 00-00873-006, and 00-00873-206 are members of Intellitec's Programmable Multiplex Control Family, as well as the 160 Channel Multipoint Switching System (RV Multiplex). They work in combination with the 160 Channel IPX Master (00-00837-000) or the PMC CPUs (00-01015-120 ) and other standard, semi-custom, or custom I/O modules.
- Available in 4, 6 and 10 button versions
- Available with Green back lighting and Red Indicators, or Green back lighting and Amber indicators
- Units have extra bright LEDs that can be dimmed via PMC programming or software
- Push button legends are easily created and applied by the installer
- Programmable via a Windows interface and GUI provided by Intellitec. Each button, indicator and back lighting can be easily programmed by the installer to communicate on any PMC System, or Multipoint Switching System channels
- Wall cover plates are available in white, black, or pumice
- Keypads can be mounted behind a panel with cut-outs, or on the surface with wall cover plates
Part number:
00-00931-000
Description:
The PMC Data Converter Module provides alternate solutions in complex Intellitec Multiplexing systems. Intellitec’s PMC communications signal includes two levels for each channel, data levels “A” and “B”. In addition, when using the PMC 320 Channel CPU,
two communications busses are available, Blue and Yellow.
The “normal” signaling between the Input and Output modules and CPU is done on level “A”. These signals are received by either the Output Modules or the CPU and interpreted to result into an action.
Part number:
2A-6A:
00-00971-300
5A-15A:
00-00971-200
10A-35A:
00-00971-100
20A-50A:
00-00971-000
Description:
Intellitec's Motor Control w/ Voice Output is part of the expanding family of the MONOPLEX System. These controllers are designed to control the operation of a slide out room electrical mechanism.
Features
New features included in this slide-out module includes the follow;
- Ignition Interlock,
- Press and Hold Operation,
- With or Without Audible announcement in combination with or without delay of slide-out motion.
Part number:
12V Model:
00-00937-516
24V Model:
00-00979-506
Description:
The PMC Output Modules 00-00937 are members of Intellitec's Programmable Multiplex Control family, as well as the 160 Channel Multipoint Switching System. These
output modules work in combination with the PMC CPU or the 160 channel IPX Master and other standard, semicustom, or custom I/O modules. They provide solid-state outputs with the capability of dimming lights and allow the vehicle user to preset 4 different scenes.
The modules provide power fusing, switching, and distribution. Switching is accomplished via long life, field effect transistors instead of relays. Four outputs are rated at a maximum of 10 Amps and two outputs are rated at a maximum of 20 Amps . The total module current is limited by the “I squared rule".
VPLC
Part number:
12V Model:
00-00808-000
24V Model:
00-00808-240
Description:
Intellitec`s Vehicle Programmable Logic Controller ( VPLC ) is our entry-level programmable controller, VPLC is ideal for small buses, van conversions / up fitting market where the electrical specifications make it unfeasible to use standard wiring. Compact and rugged in design, IPLC comes with its own Windows-based Graphical User Interface ( GUI ) that makes the VPLC a very powerful control system.
Key features
• 10 solid state outputs
• 3 High side direct inputs
• 1 Temperature input
• 1 Voltage sense input
• 1 Audible alarm output
• 10 Virtual channels
• 5 Timers, one shot or duty timer selectable
• Event counter
• Fully waterproof to IP67
• Communicates over standard automotive cables
• 6 & 10 way switch panels
Switches and Touch Controls
Switch panels, Emergency Time Manager, RC
Display Systems
Intellitec Design and manufacture a wide variety of display systems for the special vehicle and marine sector. Our display products range from simple battery voltage with disconnect displays used by various RV OEMS, to ship system indicators for well know boat manufacturers, special purpose time managers for the paramedic market and LCD displays used in the bus & coach market. Like many of our products and systems we take inspiration from our ever increasing customer base. We welcome customers new and old with there display ideas.
Part number:
00-00775-000
Description:
The Intellitec Emergency Time Manager (ETM) is a clock & timer specifically designed to assist medical personnel with time-critical operations such as drug infusions within a difficult and testing environments such as an ambulance or an emergency response vehicle. The unit is designed to be mounted within the interior of the vehicle & directly connected to the electrical system. The ETM circuitry is protected against electrical surge and transient conditions, in addition, high voltages caused by load dump will not damage the clock. The ETM will automatically switch the display off 20 minutes after the vehicle's engine is shut down and no charging voltage is present, thereby protecting the battery. The clock will, however, continue to run until the vehicle is restarted when the display will be automatically switched back on. Only 2 connections are required, + Bat & Ground.
No Image Available
Part number:
00-00183-010 (Slide Out Switch (Brown))
00-00183-011 (Slide Out Switch (Black))
00-00183-012 (Slide Out Switch (White))
Description:
The MPX Switch is part of Intellitec's Monoplex System family of products. The remote switch can be located in the vehicle, away from the controller and eliminate the need to run long heavy gauge wire to high current loads. The switch comes in multiple color options and come in both single and dual configurations.
Custom Panels and Contract Manufacturing
Intellitec offers custom engineered panels to supply OEM’s with a plug and play system. Fully tested, our panels greatly reduce the installation cost and improve the quality of your control and monitoring system.
Cost competitive quick turn contract manufacturing services are also available for low and higher volume needs. Intellitec builds through-hole, surface mount and hybrid printed circuits, harnesses, assemblies and control panels at our 35,000 state of the art ISO9001:2015 facility.
To learn more about Intellitec's contract manufacturing capabilities, click on the link.
