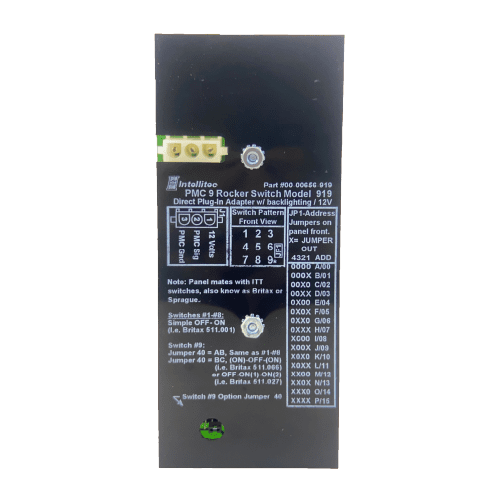

9 Channel Rocker Switch Adapter Module
The 9 way switch adapter is designed to allow IITT rocker switches (also known as SWF, Britax, or Sprague) plug directly into the adapter, eliminating the need for a harness, or separate wiring to each switch. All switch information is directly communicated to the PMC CPU via the two wire PMC communications link. The module can be set to operate on 1 of 16 channels A-P using a series of jumpers 1-4. The switches do not control the loads or functions directly, they communicate information to the PMC CPU which sends the information to an output module for functional control.
