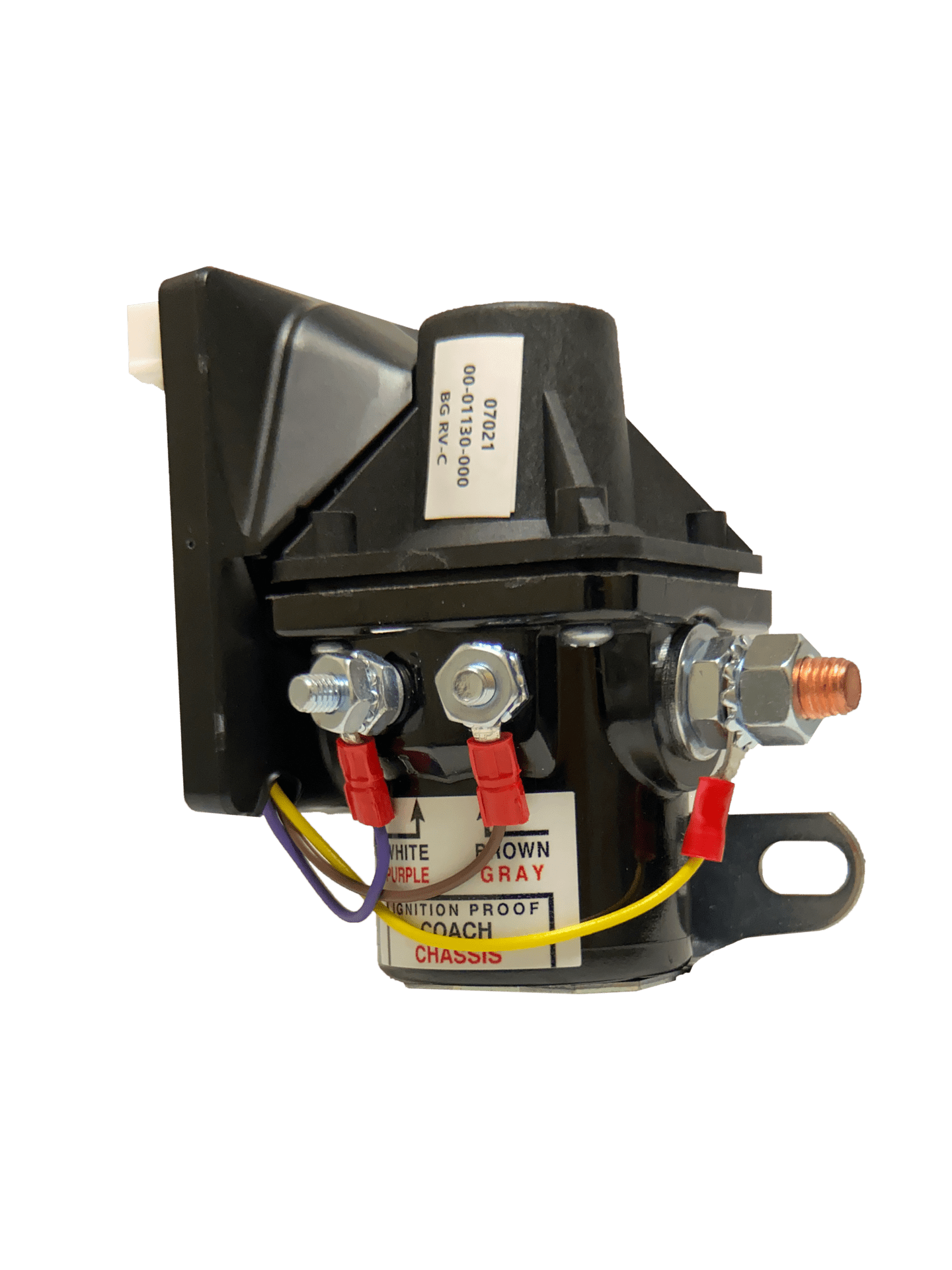

Battery Guard 1000® RV-C
00-01130-000
The Battery Guard® 1000 or BG1K RV-C is a battery disconnect and DC power management device. It has 3 primary functions:
1. Protecting the battery’s integrity by automatically disconnecting DC loads when battery voltage is getting to low
2. Manage power to DC loads by automatically reconnecting when safe battery voltage is present
3. Provide DC system information such as voltage and current through the device for real time monitoring and analysis
Features:
• 100 Amp continuous load capacity for primary disconnect
• Mechanically latching requires no current draw to maintain state
• Configurable parameters to work with all battery types
• Automatic low voltage disconnect and reconnect capability
• Inhibit feature to prevent unintended disconnects
• Disconnect and reconnect verification with automatic retry
• Low side switch input toggles between connected and disconnected state
• 300 mA high-side alarm output for indicating disconnected, reconnected, and low voltage state
• Industry standard connectors for easy installation
• Over Temperature Protection
• Ignition Proof
• 2 Amp Auxiliary disconnect bypass for critical loads with unique low voltage parameters
• Load current monitoring for both primary and auxiliary disconnects

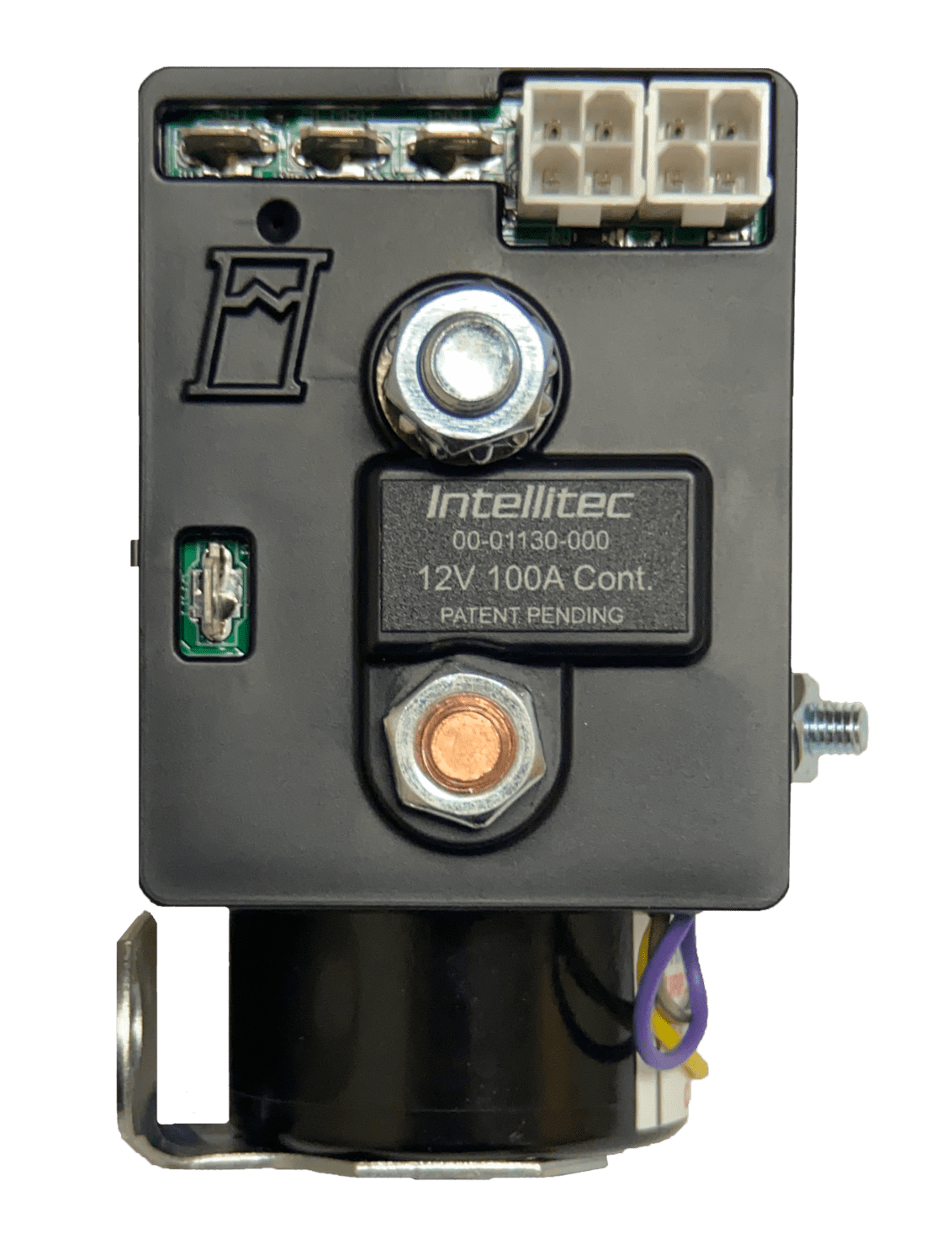

• Dual RV-C Communication ports (1 switched voltage, 1 constant voltage)
• State of Charge can be provided by smart batteries via RV-C for more accurate remaining capacity readings
Part Numbers
00-01130-000
