PMC 4 In / 6 Relay Output Module

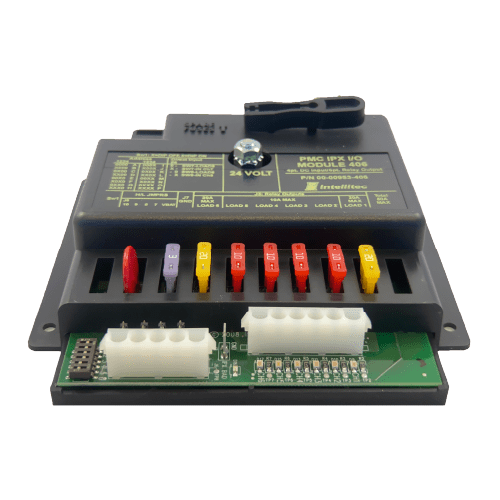

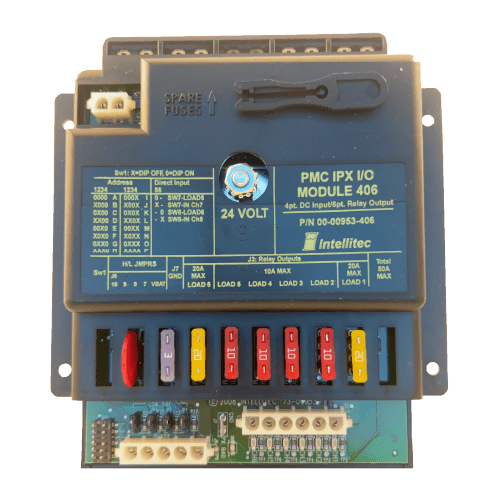

The PMC I/O Module 416 is a member of Intellitec's Programmable Multiplex Control family.It works in combination with the PMC CPU and other standard, semi-custom, or custom I/O modules. The 406/416 provides power fusing, switching, and distribution in one module. It has two, 15 Amp SPST relays and four, 10 Amp SPST relays for switching loads to the battery. Each fuse position can be filled with a fuse, or circuit breaker.The total module current should not exceed 50 Amps. There are four input connections for rocker,limit, or sensor switches. Each individual input can be configured as either a low side switch to ground, or a high side switch to battery. Input information is directly communicated to the CPU and the relays are controlled by the CPU via the PMC communications link. All of the output harnesses are connected with AMP Mate-N-Lok connectors to reduce installation time and errors. The approximate module dimensions are 6.375" X 6.250" X 1.875" (16.2mm X 15.9mm X 4.8mm). It should be installed in a protected environment inside the vehicle.
