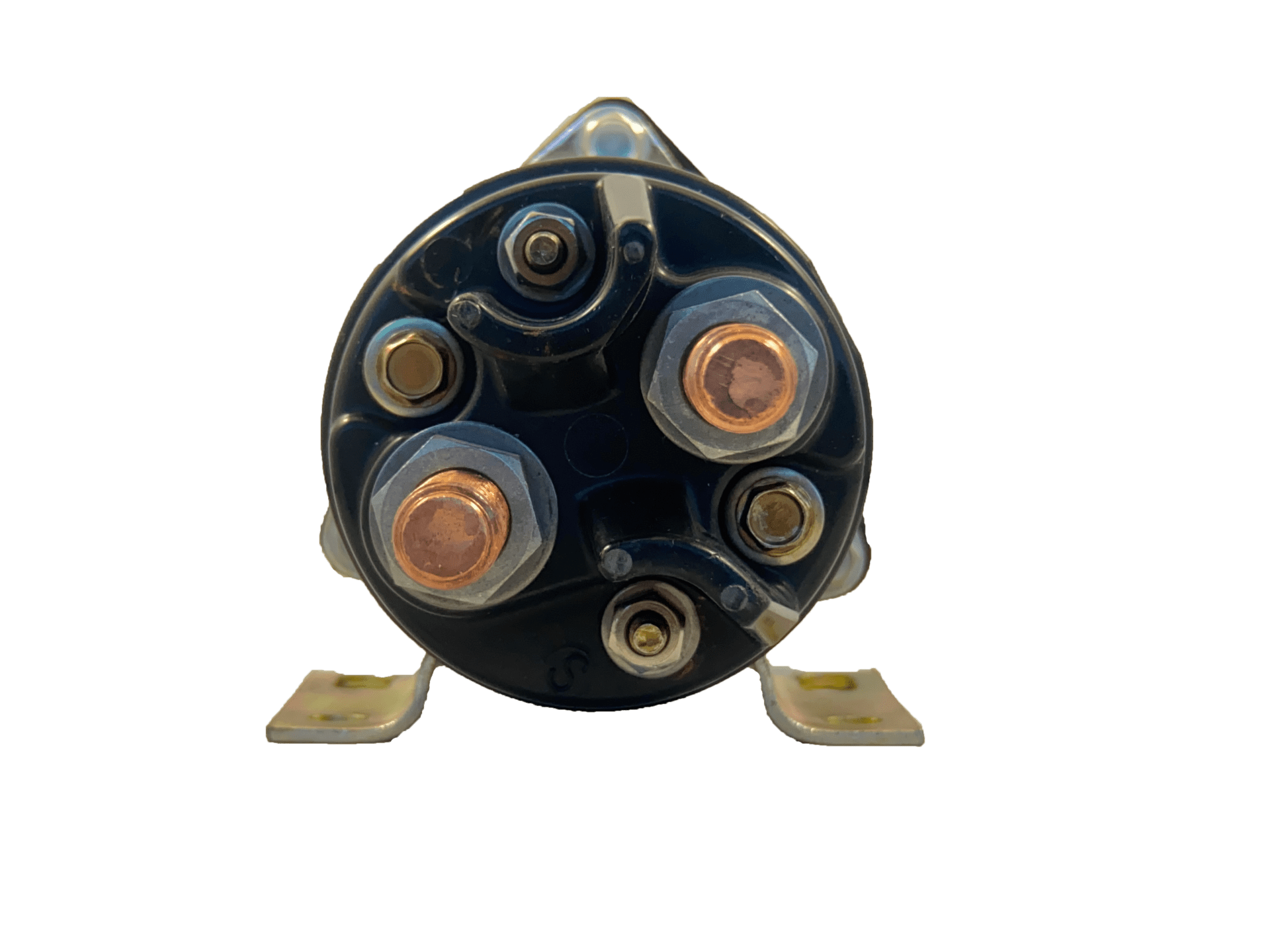

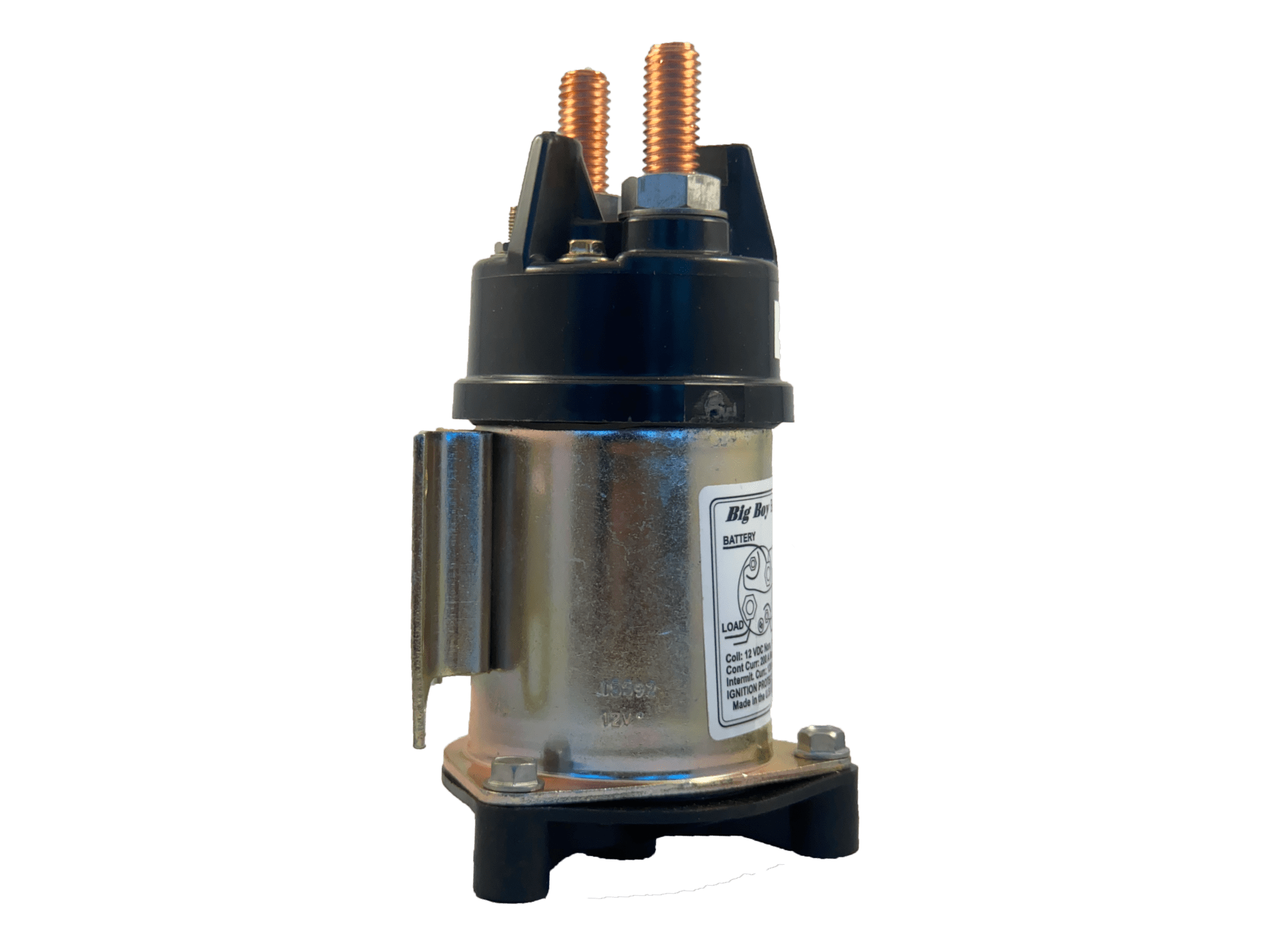

Battery Disconnect 200A
00-00507-000
Intellitec's Big Boy line of battery disconnects come with a latching configuration. This incredibly rugged, reliable and cost effective disconnect design is the global standard for OEM`s to use as their main Battery Disconnect.
The Big Boy is rated for 200 Amps continuous duty and is available in 12V and 24V configurations. Intellitec can supply the OEM with a kit for your Battery Disconnect requirements complete with harness, switch, hardware and disconnect.
Buying Options (00-00507-512)
Part Numbers
12V Models:
00-00507-012
00-00507-512 (Ignition Protected).
00-00507-712 (Marine Application)
24V Models:
00-00507-024
00-00507-524 (Ignition Protected).
00-00507-724 (Marine Application)
Documents
| Amperage | 200A | 200A |
| Nominal Actuation Voltage | 12V | 24V |
| Actuation Current | 6 Amps | 6 Amps |
| Minimum Actuation Voltage | 9 Volts | 18 Volts |
| Maximum Continuous Carry Current | 200 Amps | 200 Amps |
| Maximum Short Term Carry Current (30 sec) | 1200 Amps | 1200 Amps |
| Maximum Ambient Temperature | 185 Degrees F. | 185 Degrees F. |
| Minimum Ambient Temperature | -40 Degrees F. | -40 Degrees F. |
| Contact Life at Full Load | Min. of 10,000 Cycles | Min. of 10,000 Cycles |
| Max. Actuation Time | 0.2 Seconds | 0.2 Seconds |
| Height | 7.0 in | 7.0 in |
| Width | 3.72 in | 3.72 in |
| Depth | ||
| Relay | Latching | Latching |
Battery Disconnect 200A Kits
200A Single Disconnect Kit
10-01090-002
Intended for remote disconnect of either chassis or auxiliary battery of a vehicle. This BDX system includes 1x 200 A battery disconnect relay, 25 ft. of cable, BDX monitor panel with voltmeter, and ignition interlock to prevent disconnection while engine is running.
Kit includes:
- (1) Battery Disconnect Panel
- (1) Big Boy 12V Battery Disconnect Relay
- (1) 25 ft Big Boy Harness
100A / 200A Dual Disconnect Kit
10-01090-102
Intended for remote disconnect of both auxiliary and chassis batteries of RVs and specialist vehicles with
dual batteries. This BDX system includes 1x 100 AMP & 1x 200 A battery disconnect relay, 25 ft. of cable, and BDX monitor panel with two LED ON/OFF indicators, digital voltmeter and ignition interlock to prevent disconnection while engine is running.
Kit includes:
- (1) Universal BCC Switch Panel
- (1) Relay-Battery Disconnect - 12V/100A
- (1) Big Boy 12V Battery Disconnect Relay
- (1) 25 ft Big Boy Harness
Kit Documents
